Description

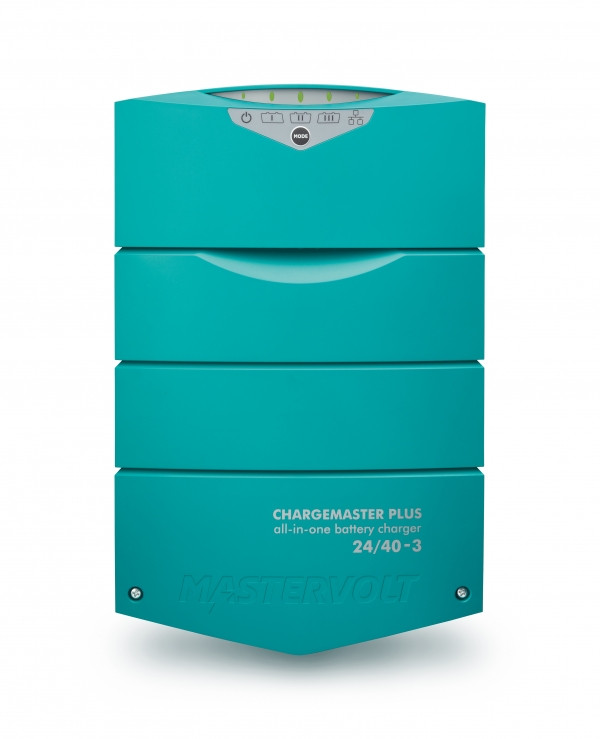

Mastervolt ChargeMaster Plus 24/40-3 Czone

Model: 44320405
  • MasterBus, CZone and NMEA communication.
  • Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
  • Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
  • Charges multiple batteries while being underway.
  • Offers 20 % more output at 14.4 V and 80 % charging power at 60 °C.
  • Safe Charge: quickly recognize the State of Charge for extended battery life.
  • Very wide operating range of 80-275 V AC, 35-70 Hz.
  • Compact, easy to connect and quick to install.

ChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.

With the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are:

The ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.

Nowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.

In modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.

Specifications
Communication & monitoring
Communication interfacesMasterBus, CZone, NMEA
General specifications
Nominal output voltage24v
Max. charge current per output40A
Smart In-/Output output voltage12 or 24 V
Smart In-/Output output current5-10 A at 12 V; 5-20 A at 24 V (adjustable)
Smart In-/Output input currentmax. 20 A at 24 V
Max. AC current (230 V / 120 V)6.8 A / 13.5 A
Total charge current40 A at 28.8 V
Number of battery outlets3 (max.)
Battery capacity range160-400 Ah
Nominal input voltage120/230 V (80-275 V) 50/60 Hz
AC connectionscrew terminals, suitable up to up to 6 mm
Power supply modeyes
Display/read-outLED display
Dimensions, hxwxd15.1 x 9.8 x 5.0 inch
Weight13.0 lb
ApprovalsCE, ABYC, UL1236, SAE J1171, ISO 8846, CEC, RCM/C-Tick
Technical specifications
Charge characteristicIUoUo, automatic / 3-traps+ voor Gel/AGM/nat/Lithium Ion + een door de gebruiker gedefinieerde optie
Temperature compensation-60 mV/°C / -76 mV/°F; temperature sensor included
DC voltage compensationthrough MasterShunt
Power consumption (DC side)< 2 mA (MasterBus off)
Current Control functionyes, through MasterBus
Power factor control> 0.98
Temperature range (ambient temp.)-13 °F to 176 °F
Coolingvario fan
Protection degreeIP23, vertical mounting
Protectionsover-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact)yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:
  • ChargeMaster Plus 24/40-3
  • Mounting bracket
  • Battery temperature sensor
  • Drop cable CZone/MB (1m)
  • MasterBus Terminator
  • User manual
