In Stock

Mastervolt Chargemaster Plus 30a 24v Output 120/230v Input C-zone Masterbus Nmea

No reviews yet Write a Review
$932.99
SKU:
WTMAS44320305
UPC:
816882022906
Current Stock:
5


Frequently Bought Together:

Mastervolt Chargemaster Plus 30a 24v Output 120/230v Input C-zone Masterbus Nmea
Inc. Tax
Ex. Tax

Description

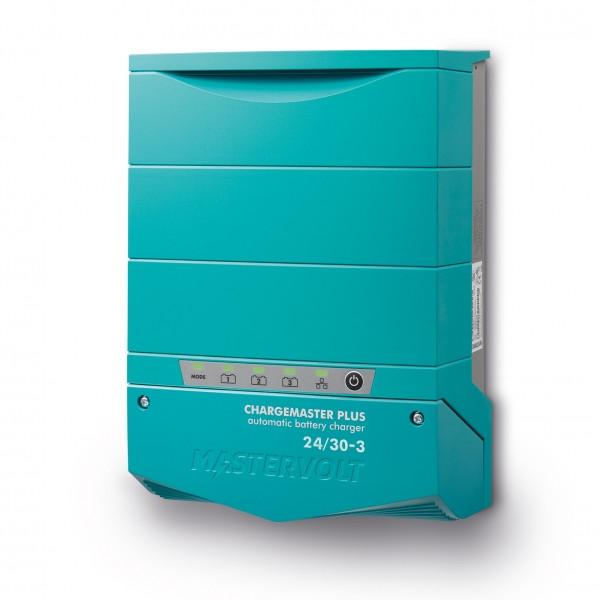

Mastervolt Chargemaster Plus 24/30-3 Battery Charger

Model: 44320305
  • Improved cooling technology results in very low noise levels across the entire power range.
  • Use as a standalone charger or as part of a complete system.
  • Automatic power distribution, maximum charging current possible on each output.
  • All 3 outputs can provide maximum current*
  • Pre-float eliminates the risk of overcharging.
  • Automatic current distribution - charging current distribution based on the condition of the battery.
  • Compatible with worldwide frequencies and mains voltages.
  • Smaller and lighter than the previous model.

The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.

The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.

The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.

The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger

The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.

The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

*The total charging current shall not exceed the maximum of the model.

Specifications
General specifications
Nominal output voltage (output 1 & 2)24 V
Max. output current primary output30 A
Total charge current30 A at 28,5 V
Max. AC current (230 V / 120 V)4.2 A / 8.6 A
Number of battery outlets3 (max.)
Battery bank size120-240 Ah
Nominal input voltage120/230 V (80-275 V) 50/60 Hz
Power supply modeYes
Galvanic isolationYes
Display/read-outLED display
Dimensions, hxwxd11.5 x 8.3 x 4.1 inch
Weight5.5 lb
ComplianceCE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA
Communication interfacesMasterBus, CZone, NMEA2000
Technical specifications
Charge characteristicIUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation-30 mV/°C / -17 mV/°F; temperature sensor included
DC voltage compensationYes, via automatic compensation or MasterShunt
Power consumption (DC side)yes, through MasterBus or Czone
Current Control functionyes, through MasterBus
Power factor control> 0.98
Temperature range (ambient temp.)-25 °C to 80 °C, derating < 0 °C and > 40 °C
Coolingvario fan
Protection degreeIP23, vertical mounting
Protectionsover-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage, ignition protection
MasterBus compatibleyes
Charger Status Interface (alarm contact)yes, using a Multipurpose Contact Output (code 77030500)

What's in the Box:
  • Chargemaster Plus 24/30-3
  • Temp Sensor
  • Wall Bracket
  • Drop cable CZone/MB (1m)
  • MasterBus Terminator
  • User and installation manual.
