Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"

No reviews yet Write a Review
$31.27
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
CW93105_1
SKU:
CW93105
UPC:
768536012446
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
6.00 (in)
Current Stock:
2


Frequently Bought Together:

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"
Inc. Tax
Ex. Tax

Description

Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1190
  • Breaking load (lb) 5950
  • Weight (lb) 0.15

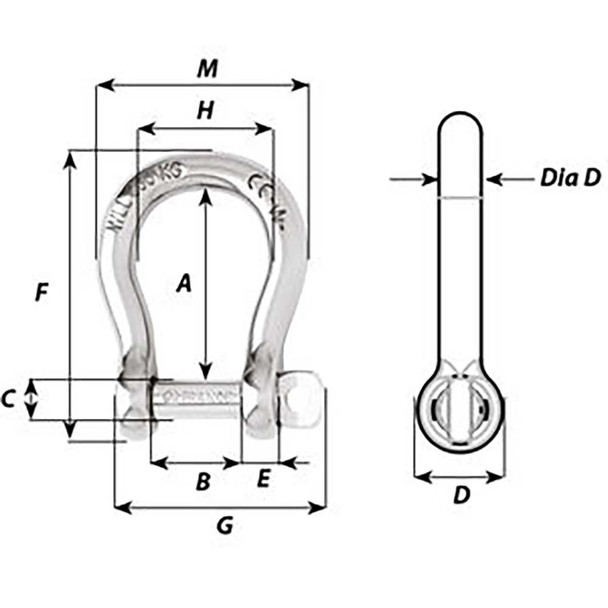

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • M (inch) 1-17/32"

Manufacturer : Wichard Marine
Manufacturer Part No : 01244
UPC : 768536012446
