Wichard Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

No reviews yet Write a Review
$27.93
Wichard Captive Pin Twisted Shackle - Diameter 5mm - 3/16"
CW93120_1
SKU:
CW93120
UPC:
768536014228
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
6.00 (in)
Current Stock:
2


Frequently Bought Together:

Wichard Captive Pin Twisted Shackle - Diameter 5mm - 3/16"
Inc. Tax
Ex. Tax

Description

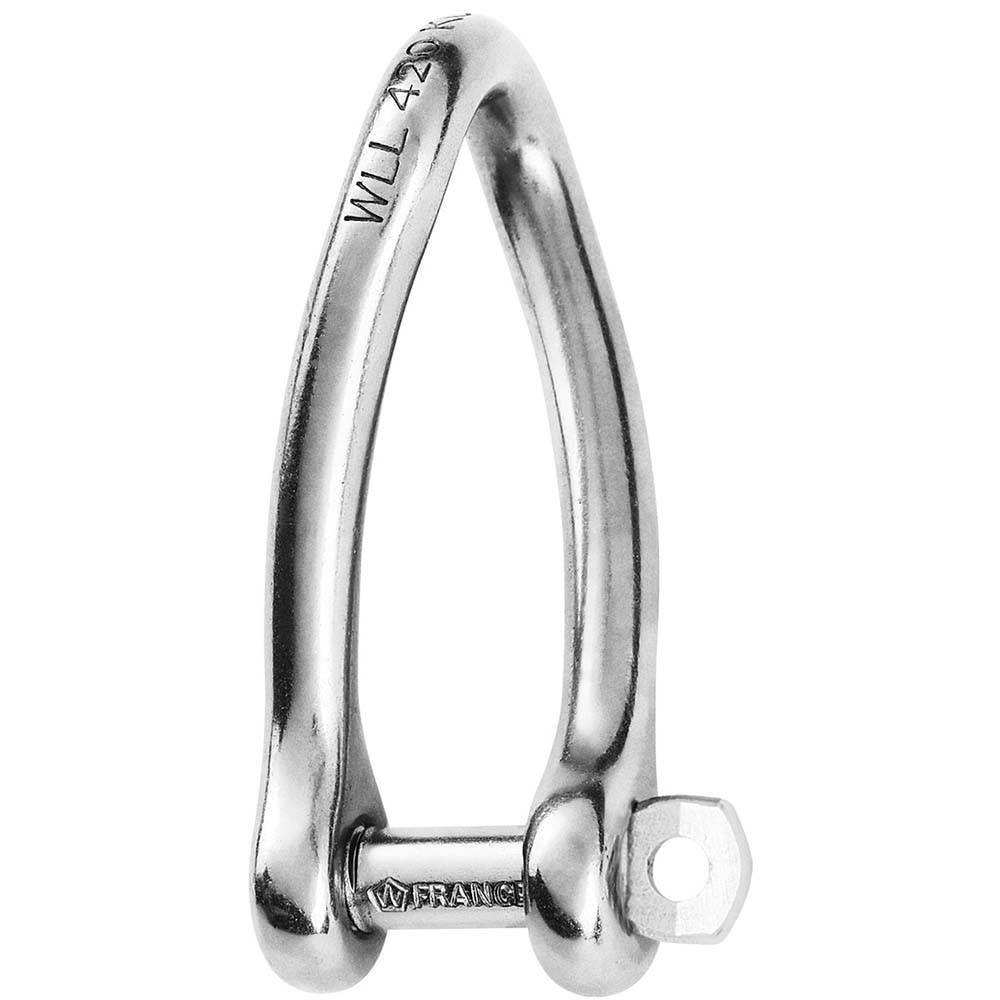

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Features:

  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single-handed operation for more safety
  • Part # 1422 is not suitable for lifting applications

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • Breaking load (lb) 3300
  • Weight (lb) 0.051

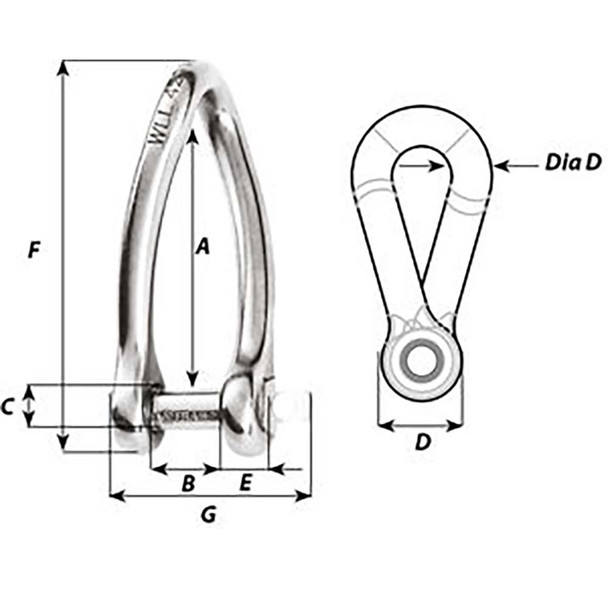

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 25/64"
  • C (inch) 15/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • F (inch) 1-31/32"
  • G (inch) 1-1/16"

Manufacturer : Wichard Marine
Manufacturer Part No : 01422
UPC : 768536014228
